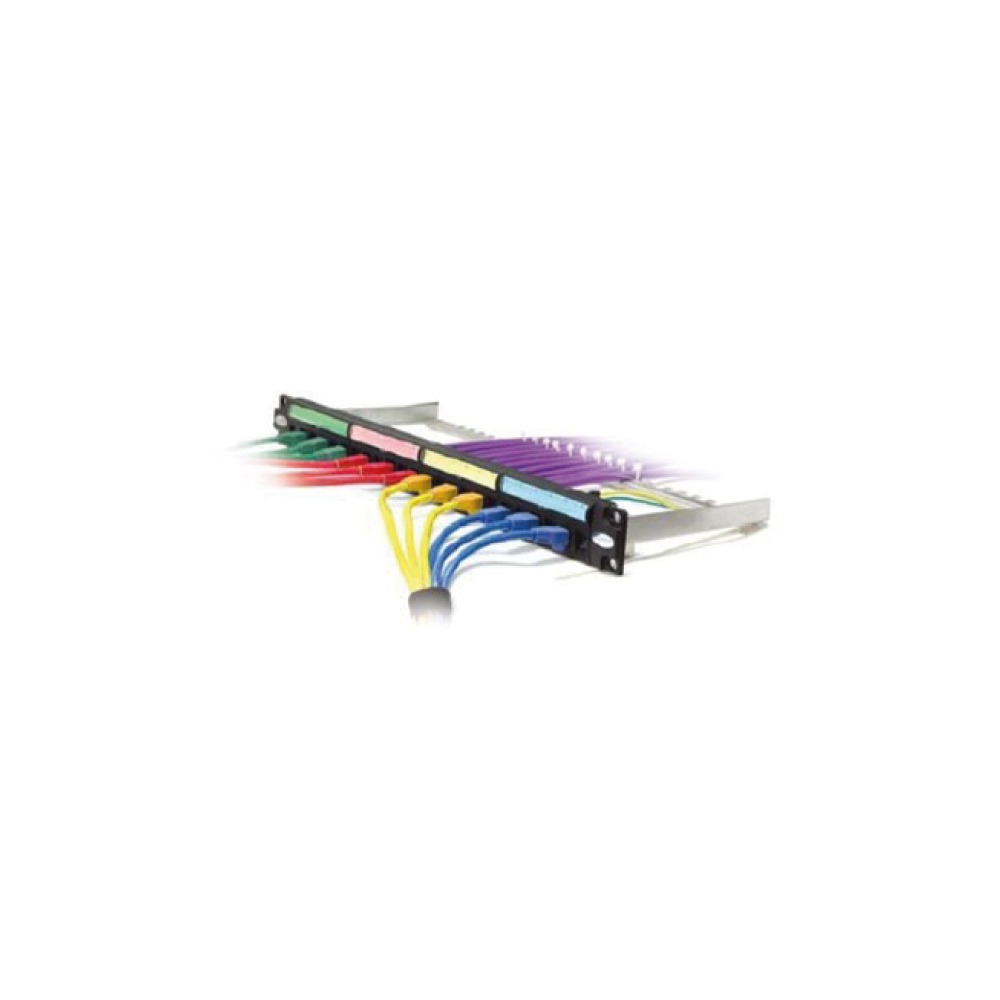

Rosenberger Cat-6 UTP 24 Port Modular Patch Panel Frame

Feature & Benefit:

HDCS® patch panel exceeds CAT.6A highest performance requirements of TIA 568-C.2
Outstanding performance including IL, NEXT/FEXT, Power sum NEXT/FEXT and Return loss guaranteeing good link performance.
Delivered with plastic cable management bar, installation screws and labelling system
Both modular type and IDC type available for different customer choice
Unshielded or shielded solution

Material Performance:

Front Panel: Steel, powder coating
Plastic: High impact flame retardant plastic, UL94V-0 rated
Contact: Phosphor bronze C5210EH
Contact Plating: Gold plating 50μ “over nickel plating 50~100μ”

Mechanical Performance:

Plug Insertion Life: 750 cycle min
Plug Retention Force: 30Lbs min
IDC Contactor: Accept 22-26 AWG solid wires
IDC Termination Cycles: 200 times min.
Temperature: -40℃ to 70℃

Electrical Performance:

Current Rating: 1.5 AMP
Insulation Resistance: 500Mega ohms min
Contact Resistance: 20milli-ohms max
Dielectric Strength: 750V AC RMS 60Hz 1min

Compare

Add to wishlist

Categories: All-Rosenberger, Cable & Charger, Cables & Accessories, Computers, Computers & Accessories, Networking Brands, Patch Panel-Rosenberger, PERIPHERAL, Rosenberger

Description

Rosenberger HDCS® patch panels are designed for both unshielded and shielded cabling system with excellent performance and easy installation, compatible with all HDCS® Modules, meanwhile having extremely high flexibility, adaptability and maximally integrated designing. It is available with 24 ports.
