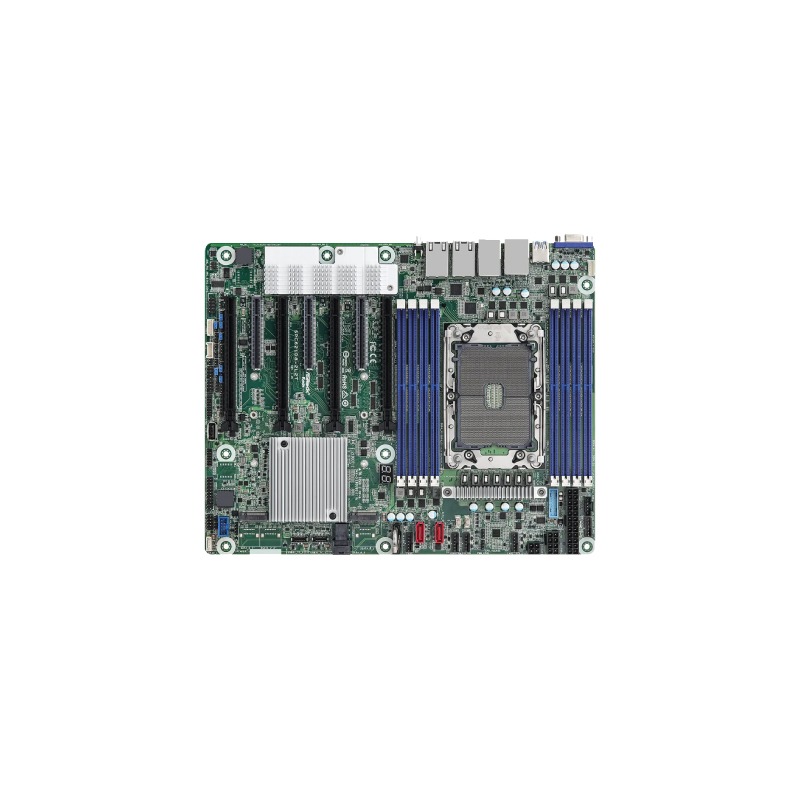

Server Board AsrockRack EPC621D8A LGA3647 Intel C621 Chipset

Product Highlights / Key Features

Model: EPC621D8A LGA3647 ATX 12” x 9.6”

Capacity : 8 x 288-pin DDR4 DIMM slots

Supports Six Channel DDR4

Supports 13 x SATA3 6.0 Gb/s by Intel C621

Supports 2 PCIe3.0x 16, 3 PCIe 3.0×8, 1 PCIe 3.0 x4

Compare

Add to wishlist

Categories: Asrock-M.B., Computer Components, Computers, Motherboard, OUR BRANDS, ourBrand_Asrock-rack-bangladesh

Description

Specification

Category	Specifications
Form Factor	ATX
Dimensions	12”x9.6”
Processor System
CPU	Supports 2nd Gen. Intel® Xeon® Scalable Processors / Intel® Xeon® Scalable Processors
Socket	Single Socket P, LGA3647
Chipset	Intel C621
System Memory
Capacity	8 x 288-pin DDR4 DIMM slots
Type	Six Channel memory technologySupport DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Voltage	1.2V
Expansion Slot
PCIe x 16	SLOT6: PCIe3.0 x16, auto-switch to PCIe3.0 x8 when SLOT5 occupiedSLOT4: PCIe3.0 x16, auto-switch to PCIe3.0 x8 when SLOT3 occupied
PCIe x 8	SLOT5: PCIe3.0 x8SLOT3: PCIe3.0 x8SLOT2: PCIe3.0 x8
PCIe x 4	SLOT1: PCIe3.0 x4
Storage
SATA Controller	Intel C621 : 13 x SATA3 (including 1 SATA DOM ports and 2 M.2 ports)
M.2 slot	1 M-key (PCIe x1 or SATA 6Gb/s), supports up to 2280
Ethernet
Interface	1000 Mbps (1GbE)
LAN Controller	4 x RJ45 by Marvell 88E1543 for 4 ports GbE
Management
BMC Controller	ASPEED AST2500
IPMI Dedicated GLAN	1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller	ASPEED AST2500
VRAM	DDR4 256MB
Audio
Audio Codec	Realtek ALC1150
Rear Panel I/O
VGA Port	1 (D-Sub)
USB 3.2 Gen1 Port	4
Lan Port	4+1 RJ45 Gigabit Ethernet LAN port
Serial Port	1
Audio	3
Internal Connector
Auxiliary Panel Header	1 (18-pin): includes chassis intrusion, location button & LED, front LAN LED
TPM Header	1
Buzzer	1
Fan Header	5
USB 3.2 (Gen1) Header	2
Type A USB 3.2 (Gen1) Port	1
Power Connector	1 (24-pin, ATX main power), 1 (8-pin, ATX 12V)
Onboard LED
Standby PWR LED 5vsb	1
Fan Fail LED	5
System BIOS
BIOS Type	256MB AMI UEFI Legal BIOS
BIOS Features	Plug and Play (PnP)ACPI 2.0 Compliance Wake Up EventsSMBIOS 2.8 SupportASRock Rack Instant Flash
Hardware Monitor
Temperature	CPU Temperature SensingSystem Temperature Sensing
Fan	CPU/Rear/Front Fan TachometerCPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)CPU/Rear/Front Fan Multi-Speed Control
Voltage	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
Support OS
OS	Microsoft® Windows: Windows® 10 (64 bit)Server 2012 R2 (64 bit)Server 2016 (64 bit)Linux: CentOS 6.8 (64 bit) / 7.2 (64 bit)SUSE Enterprise Linux Server 11 SP4 (64 bit) /12 SP1 (64 bit)FreeBSD 11 (64 bit)Fedora Core 24 (64 bit)Ubuntu 16.04/15.10 (64 bit)RedHat Enterprise Linux Server 6.8 (64 bit) / 7.2 (64 bit)Virtual: VMWare® ESXi 6.0
Environment
Temperature	Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
